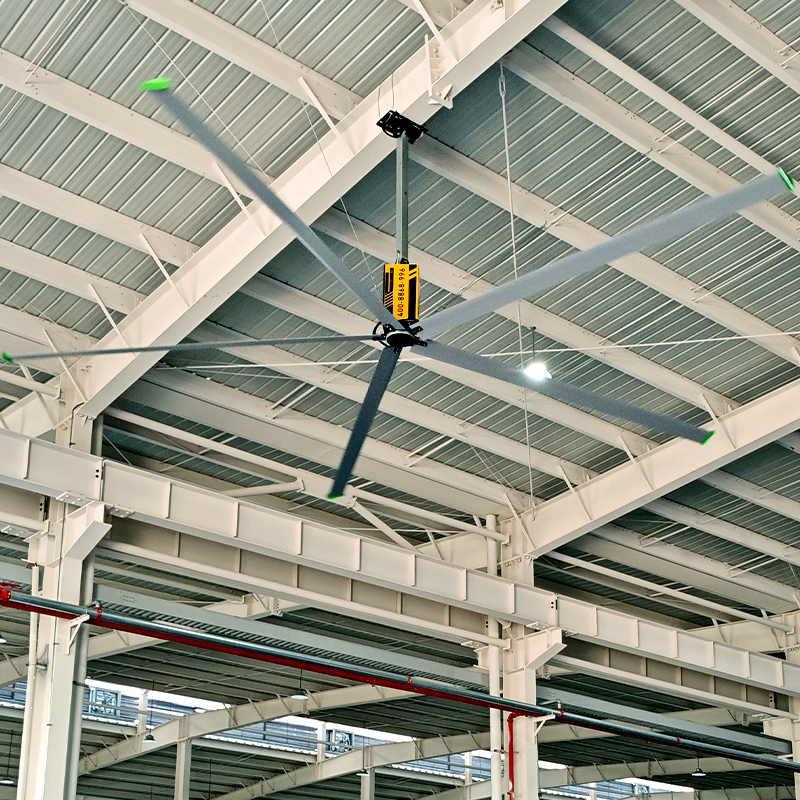

KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling
KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling
  • KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling
  • KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling
  • KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling
  • KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling
  • KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling
  • KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling
  • KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling

KF Series High-Volume Low-Speed (HVLS) Industrial Ceiling Fans for Efficient Warehouse Cooling

Discover the ultimate solution in industrial cooling with our Customizable HVLS Industrial Ceiling Fans. Engineered for maximum efficiency, these fans deliver a large volume of air across extensive areas, ensuring a comfortable environment in warehouses,
Quantity
-
+
Request Quote PDF Format
Description
Description

KF series HVLS FAN



KF series  is independently developed and designed by Julai. The precision manufacturing conforms to dynamics, hydrodynamic fan blades, large-area soft air supply, and effectively enhances the comfort of the body.

High Volume Low-Speed Industrial HVLS Fans Technical Parameters

Model Fan diameter Motor power Max speed Rated voltage Rated current Air volume Max coverage Weight Noise
HVLS-DT2573 7.3m (24') 1.5kw 57rpm 380V/220V 3.6A/6.3A 14800 m³/min 1850m² 124.5kg 55dBA
HVLS-DT2561 6.1m (20') 1.5kw 65rpm 380V/220V 3.6A/6.3A 13500 m³/min 1480m² 117.2kg 55dBA
HVLS-DT2555
 5.5m (18')
 1.5kw
 75rpm
 380V/220V
 3.6A/6.3A
 12000 m³/min 1200m²
 114kg
 55dBA
HVLS-DT2549
 4.9m (16')
 1.5kw
 80rpm
 380V/220V
 3.6A/6.3A
 11000 m³/min
 900m²
 91kg 55dBA



Advantage


1.with joint-venture technology motor reducer, stable performance and better value;

2.large air volume, good effect, long warranty and easy maintenance;

3.it is mainly used in large factories, production workshops and large storage logistics centers in various industries.




Core accessories




Geared Motor
Reduction Motor: Built on Taiwan technology and quality standards, it adopts an aluminum alloy housing and imported oil seals. Featuring high strength, long service life, corrosion and rust resistance, it delivers excellent cost performance.





Fan Blade
High-performance magnesium-aluminum alloy material and technology, perfect design, super large air volume,5 airfoil fan blades, high-performance magnesium-aluminum alloy material: 6063-T5, after T5 heat treatment + spraying treatment, the corrosion resistance of the fan blades is enhanced, and the strength of the fan blades is enhanced by the distribution of ribs, completely avoiding Blade tip droop and blade-to-connection fatigue loss.

Control System
Julai All-in-One Unit: Integrated switching power supply, advanced motor control algorithms and synchronous drive frequency conversion technology. Built-in multiple electrical protection modules, featuring 12 alarm and protection functions including electric leakage, overload and short circuit. It supports a variety of expandable functions to meet diverse customization requirements. (Split frequency converter controller is optional.)

















Fan Hub
1.High-performance aluminum alloy material, unique double chassis design, excellent safety guarantee;
2.The hub is made of ADC12 die-casting aluminum alloy, which is made through high-pressure die-casting integrated molding process + CNC precision machining method + dynamic balance full inspection. Adopt the current domestic unique combination device of anti-off plate and wheel hub safety ring to ensure the safety of the upper and lower chassis combined with fixed fan blades, and at the same time reduce the weight of the whole machine, improve the operating efficiency of the motor and improve the operating safety of the fan.

INSTALLATION DIAGRAM

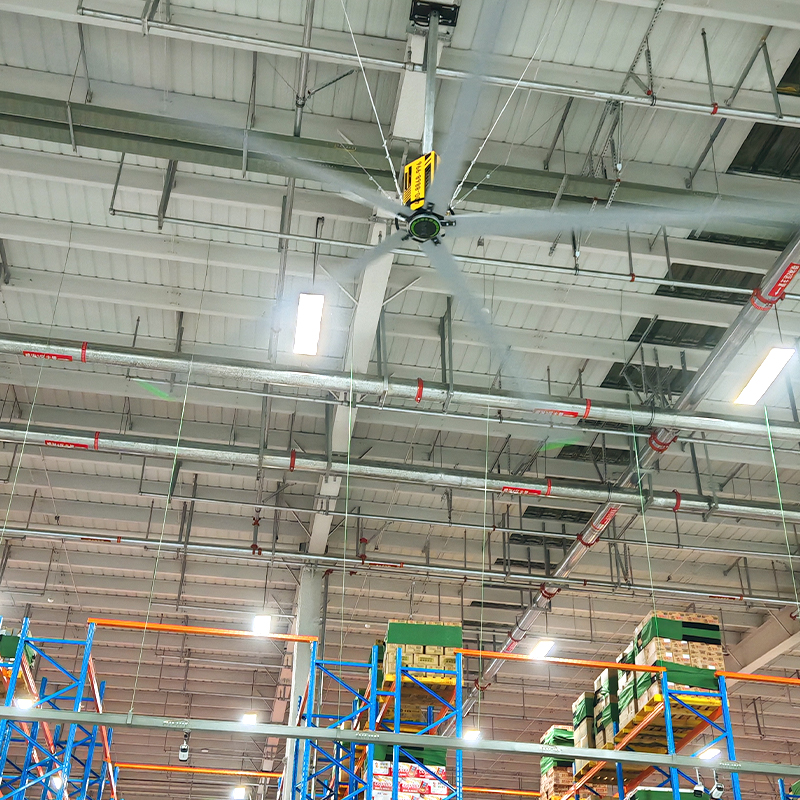

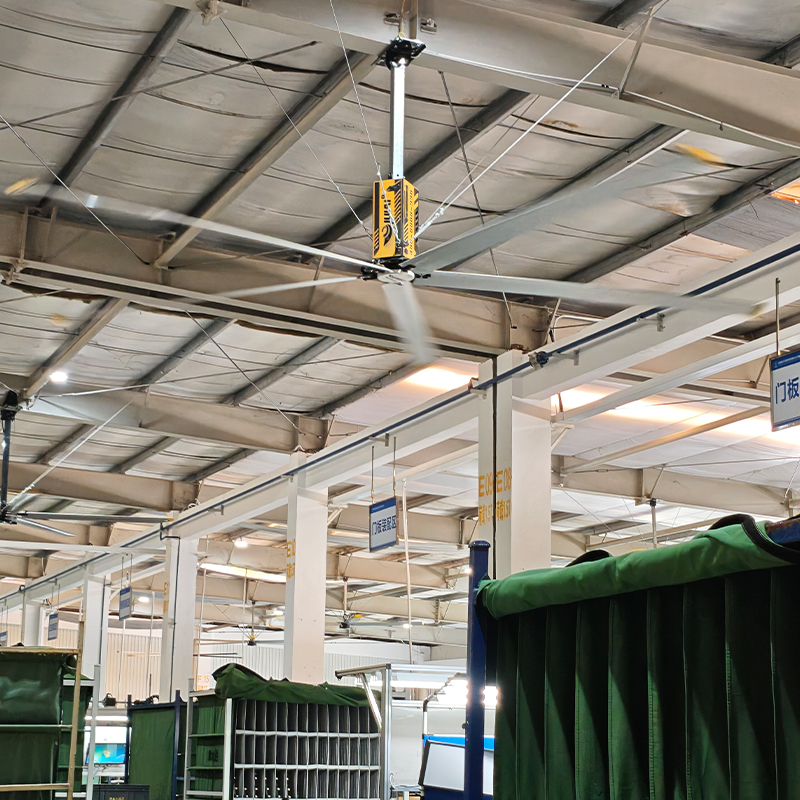

APPLICATION SCENARIO
